Blue Sea Safety Hub 150 Fuse Block w/-Neg Bar

Blue Sea SafetyHub Fuse Block

Product Overview: Blue Sea Systems offers two models of the SafetyHub fuse blocks, designed for comprehensive circuit protection. Both models accept MIDI/AMI and ATC/blade fuses, feature circuit identification labels, and are ignition protected, making them safe for use on gasoline-powered vessels. Please note that fuses are sold separately.

SafetyHub 150 Features:

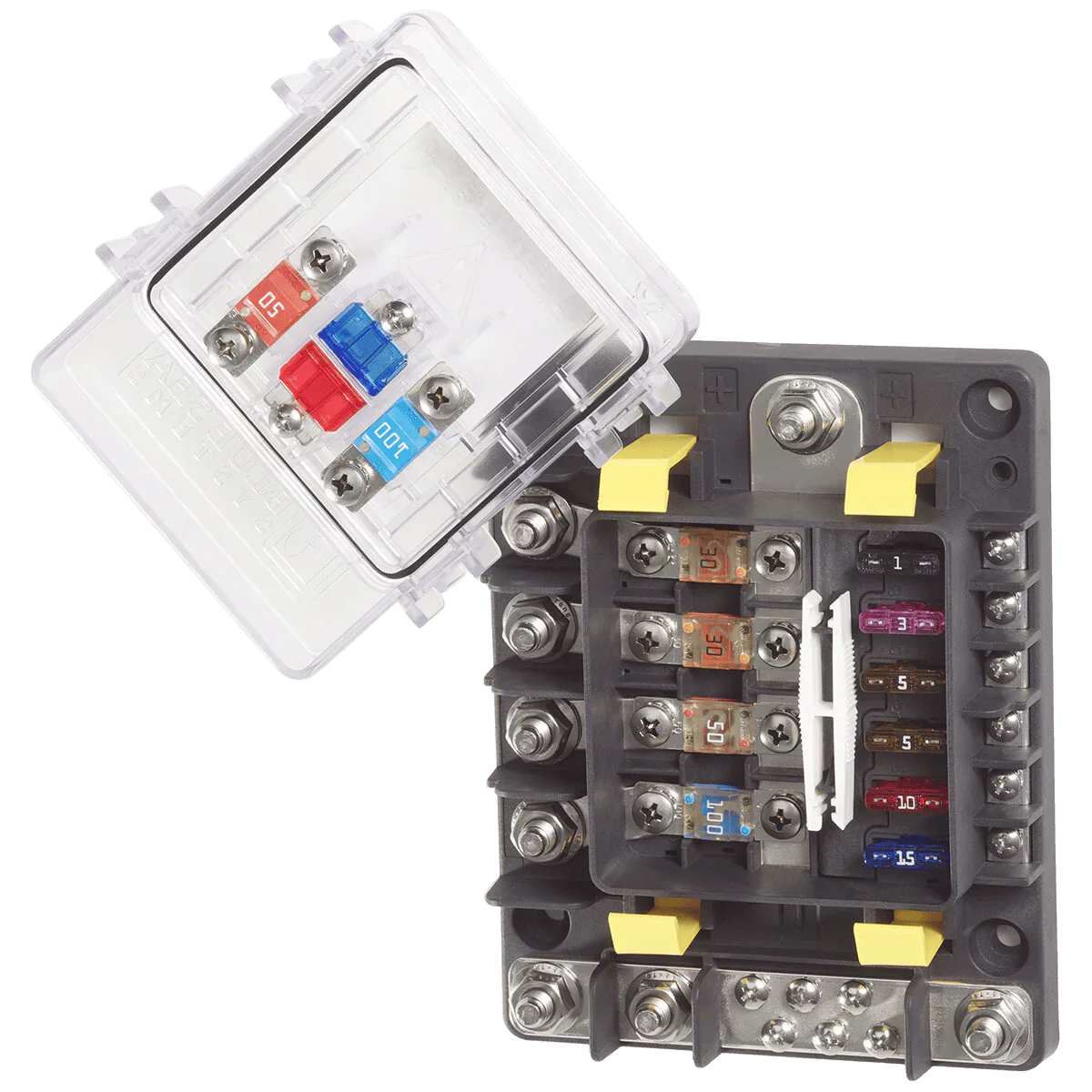

• Fuse Compatibility: Fits four 30A-200A MIDI/AMI fuses and six 1A-30A ATC/blade fuses.

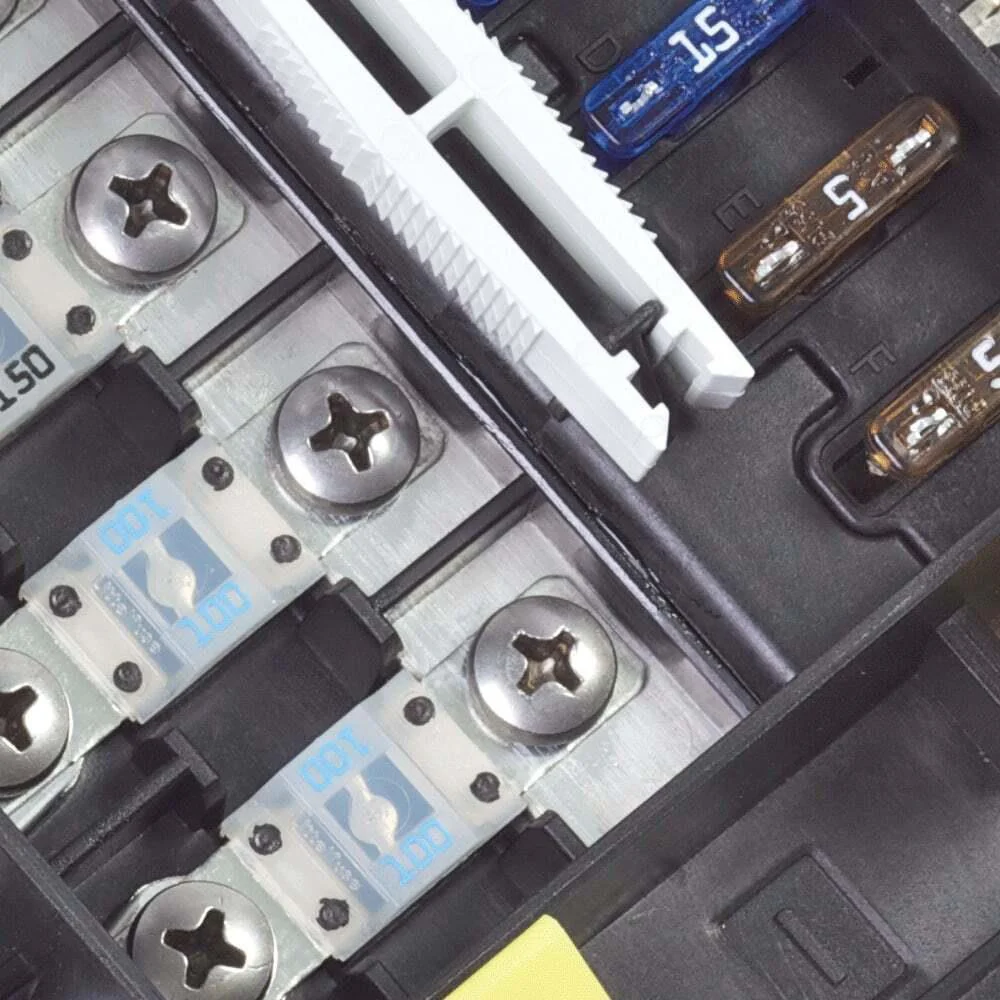

• Integrated Fuse Puller: Easily remove ATC/blade fuses.
• Cover Storage: Space for two spare ATC/blade fuses.

Detailed Description:

• Ignition Protected: Safe for use on gasoline-powered boats with screw termination.
• High-Amp Circuits: Accepts four AMI® or MIDI® fuses for circuits up to 200A.
• Medium-Amp Circuits: Accepts six ATO® or ATC® fuses for circuits up to 30A, including bilge pumps, electronics, and lights.
• Sealed Cover: Protects fuses from harsh marine environments and meets ABYC/USCG insulation requirements.

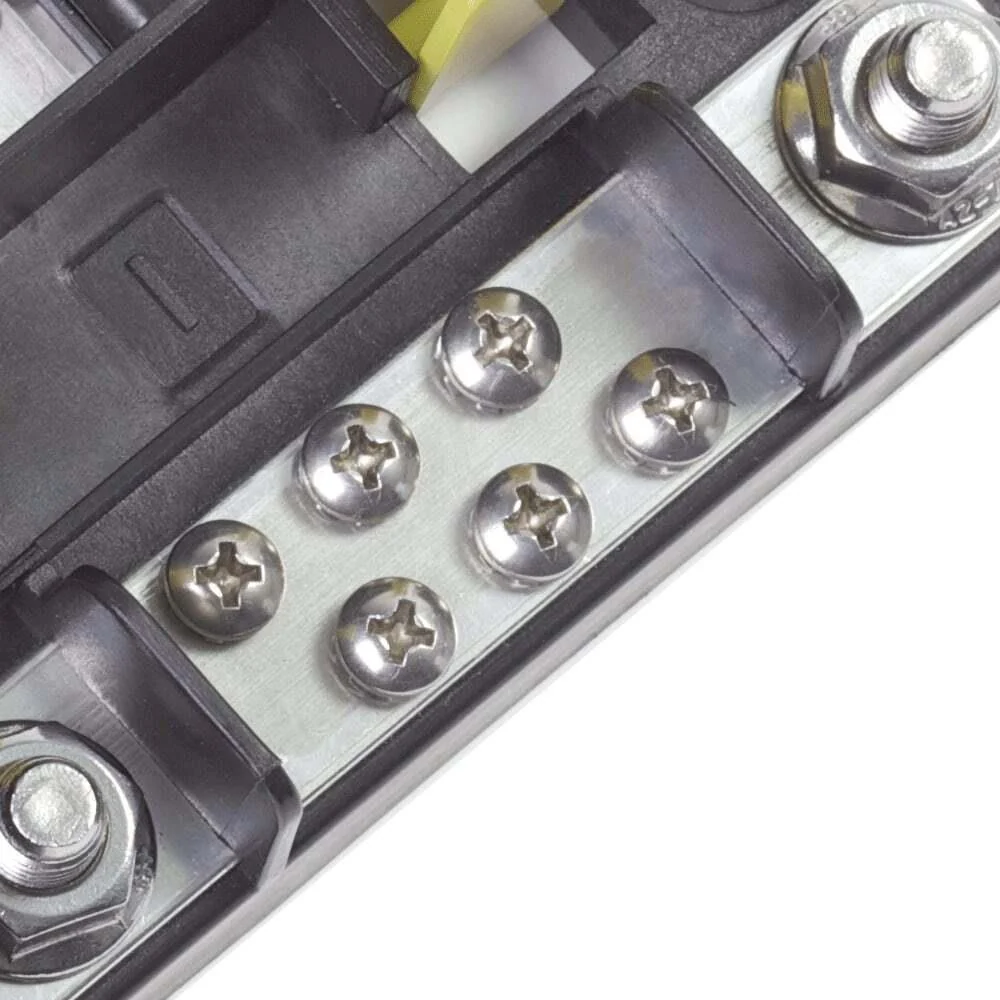

• Negative Bus: Provides a common location for negative connections.

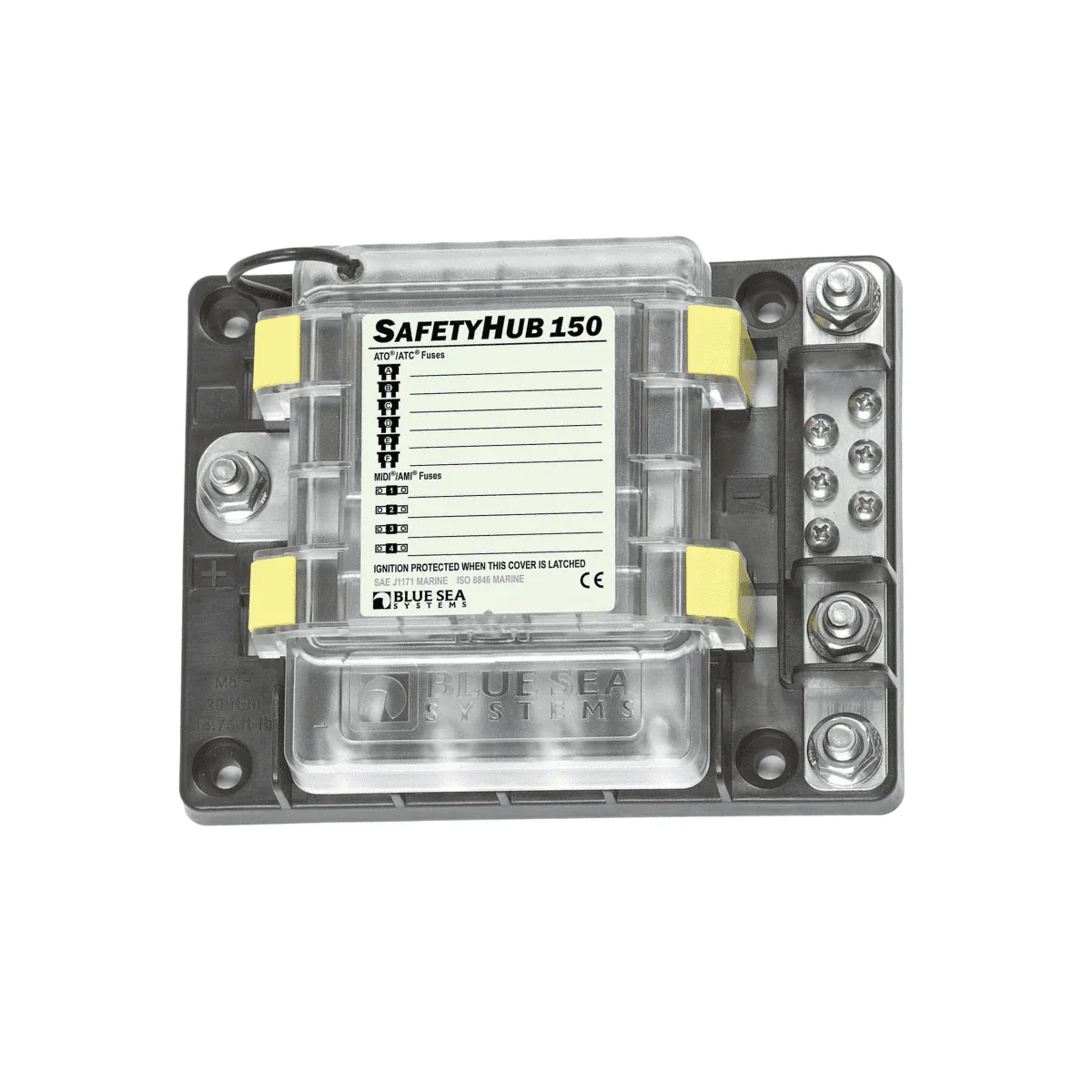

• Circuit Identification: Write-on labels for easy identification.

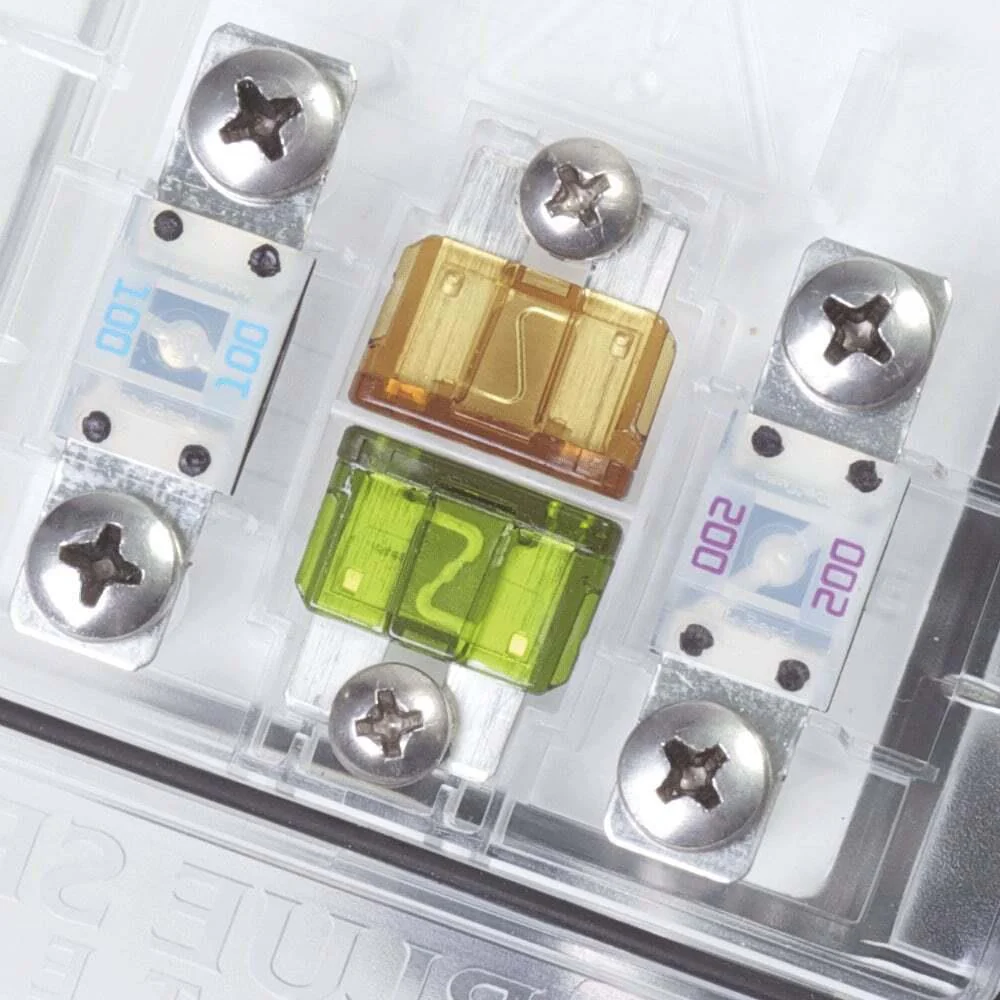

• Spare Fuse Storage: Cover stores two spare ATO® or ATC® and two spare AMI® or MIDI® fuses, along with mounting screws.
• Secure Connections: One-piece stainless flange nuts ensure safe and secure connections.

Specifications:

• Circuits: 10
• Stud Size: M8 x 1.25
• Operating Voltage: 12V, 24V, 32V
• Maximum Operating Amperage:
  • 200A using 2/0 cable at 50°C maximum ambient temperature
  • 350A using 4/0 cable at 50°C maximum ambient temperature
  • 600A using 2 x 4/0 cable at 50°C maximum ambient temperature
• Recommended Ring Terminal: M8 (5/16")
• Screw Torque:
  • 8-32: 18 in-lb (2.03 Nm)
  • M5: 27 in-lb (3.05 Nm)
• Stud Torque: 180 in-lb (20.34 Nm)
• Weight: 3.50 lb (1.59 kg)

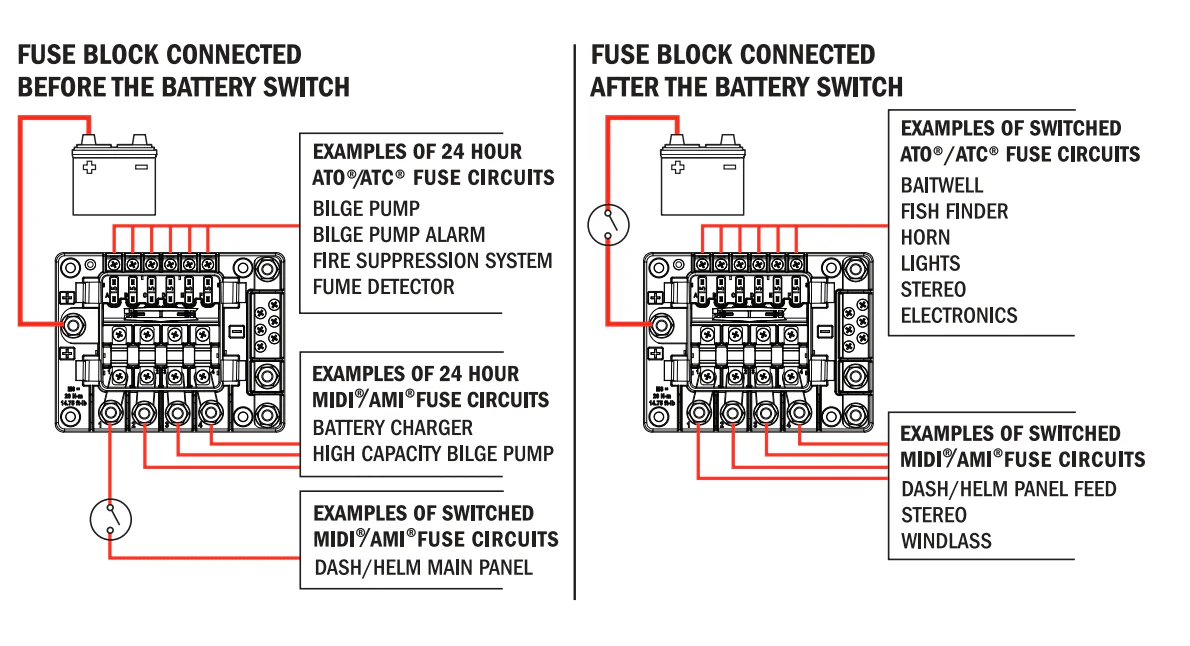

The SafetyHub 150 consolidates ignition-protected, high-amperage, and 24-hour circuit protection into one location near the battery. It also provides circuit protection for the 360 Panel feed wire, minimising panel space and ensuring all high-amperage cables are protected.
