Deutsche Hydrapro - Alpha G1600 (1600PSI) Brake Actuator

Alpha G-1600 Hydraulic Brake Actuator – 1600 PSI

Engineered for performance and durability, the Alpha G-1600 Brake Actuator combines a sleek, compact design with rugged construction to handle the toughest environments. Whether you're navigating saltwater exposure or rough terrain, this actuator delivers fast, reliable braking power—reaching 1000 PSI in just 0.184 seconds.

Optimized for Use with Disc Brakes

Key Features:

• Built-in Compatibility Adapter
  No need for external adapters—plug and play simplicity.
• High-Performance DC Motor & Pump
  Minimal moving parts for long-lasting reliability.
• Weatherproof, Anodized Alloy Housing
  Protects internal components from saltwater, extreme temperatures, and harsh road conditions.
• T6-Grade Extruded Alloy Body
  Durable, corrosion-resistant, and visually appealing.
• Independently Sealed Fluid Tank
  Prevents contamination and ensures consistent performance.
• Moisture-Resistant Circuit Board
  Conformal coating adds an extra layer of protection.
• Backed by a 2-Year No-Hassle Warranty

Specifications:

• Compliance: DOT Approved
• Mounting: Trailer-mounted
• Application: Disc brakes for single, tandem, tri, and quad axle trailers
• Mounting Hole Spacing: 278mm & 35mm (10.95” & 1.38”)
• Mounting Hole Size: 12 x 8 mm (1.2cm x 0.8cm) slot
• Hydraulic Port: 3/16" Inverted Flare (standard brake line fitting)
• Brake Fluid: Compatible with DOT 3 & DOT 4 (Do not use Super DOT 4 or DOT 4+)
• Fluid Capacity: 15.7 oz
• Power Supply: 12V DC (minimum 30 amp circuit)
• Current Draw: 18–24 amps at full pressure

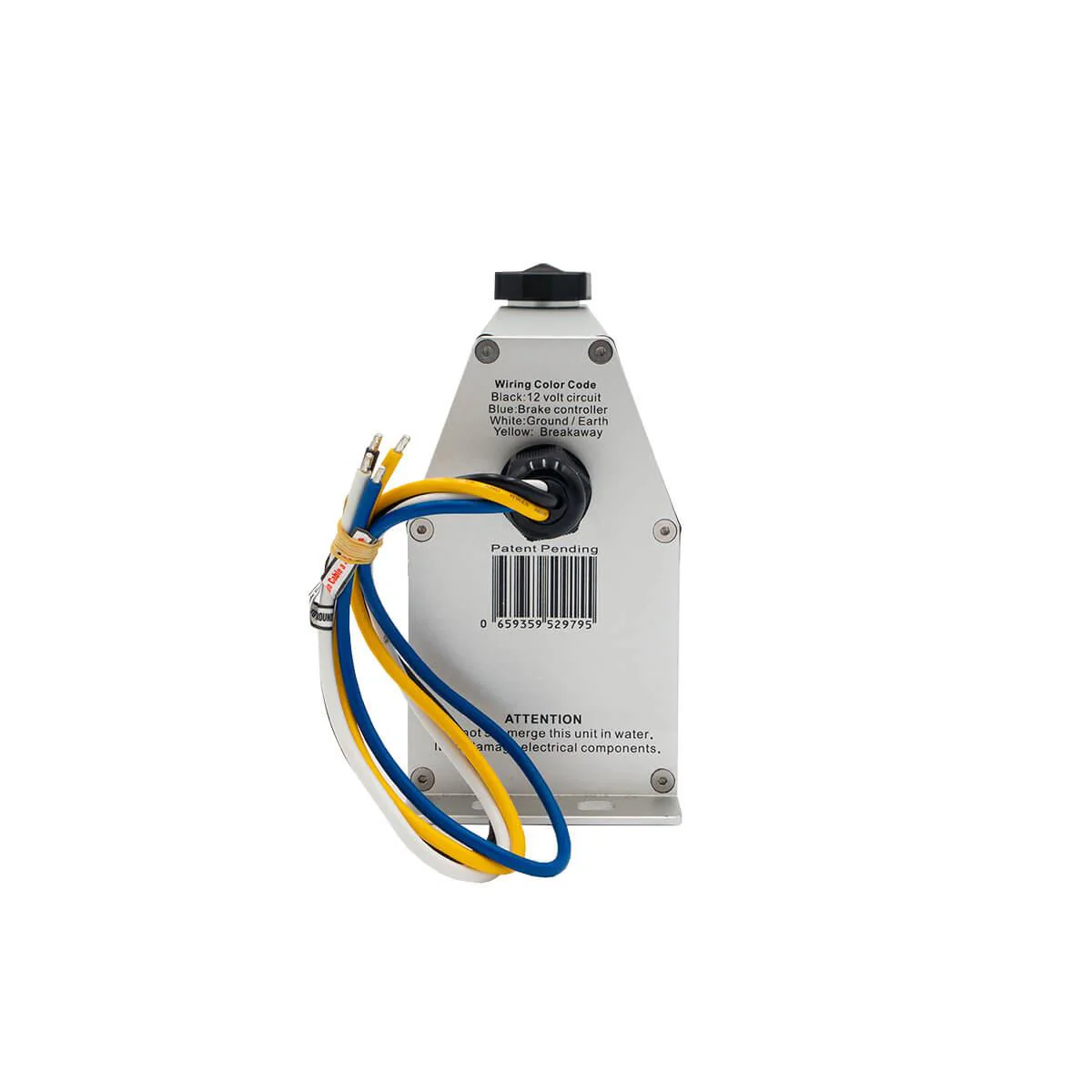

 Wiring Configuration:

• Black: 12V Power
• Blue: Brake Controller
• Yellow: Breakaway
• White: Ground

Recommended Wire Gauge:

• 10 AWG for Black and White
• 12 AWG for Blue and Yellow

Wiring diagram here

Dimensions:

• Length: 255mm (10”)
• Height: 152mm (6”)
• Width: 90mm (Base), 44mm (Top)
• Mounting Centers: 275mm (L) x 40mm (W)

Product Manual here
